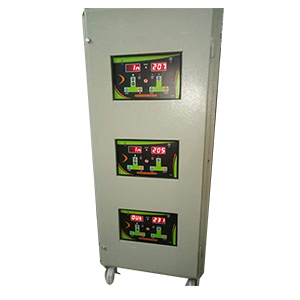

Servo voltage is prominent manufacturer of superior quality automatic voltage stabilizer for various industrial uses for those machinery/appliances which are run on supply of three phase air cooled servo voltage stabilizer. The stabilizer senses the voltage fluctuation in the machinery and then internally supplies required steady output voltage. This made smooth functioning of machinery/appliances. The entire operation executes automatically and doesn’t require any manual efforts for checking voltage fluctuation on regular interval. . This servovoltage stabilizer is designed for three phase current supply and the cooling process executes with the help of air.
Servo voltage stabilizers are fully automatic and equipped with many features which are highly being used in industrial machinery. The durability and performance of these machineries enhanced due to these stabilizers and thus helps in un-interrupted service.
VIEW DETAILS| Range: | 300 V – 460 V AC 50 Hz 3 PH |
| Other Input Ranges: | 245 V- 460 V AC 3Ph/ 340 V- 460 V AC 3Ph/ 360 V- 460 V AC 3Ph |
| Frequency: | 47Hz to 53 Hz |
| Output Voltage: | 380 V / 400 V/ 415 V AC 3Ph 50 Hz |
| Unbalanced 4 Wire : | R Y B N |
| Connections: | Star |
| Output Voltage Adjustable: | 380 V to 415 V AC in 3Ph/ 220 V to 240 V AC in 1Ph/ |
| Output Voltage Regulation: | ± 1% |
| Over Load Capacity: | 120% |
| Correction Rate: | 15 V / 20 V / 35 V / Sec-1Ph/25 V / 35 V / 60 V / Sec-3Ph/110V/Sec for D.C. |
| Waveform Distortion: | Nil |
| Output Waveform: | True Reproduction of Input |
| Insulation: | Class 'B' |
| Short CKT Period & percentage: | 300 % for 250 m.sec. |
| Normal Operating Temperature: | 0ºC to 45ºC |
| Climatic Conditions: | 90 % RH.Max.Non-Condensing at 35º C |
| Mode of System: | Fully Automatic / Manual |
